- 82型壓力傳感器中英文產品介紹
- 來源：賽斯維傳感器網 發表于 2014/6/11
Applications: Medical Instruments, Process Control, Fresh & Waste Water Measurements, Partial Vacuum Gas Measurement, Pressure Transmitters, Tank Level Systems (RV & Industrial)

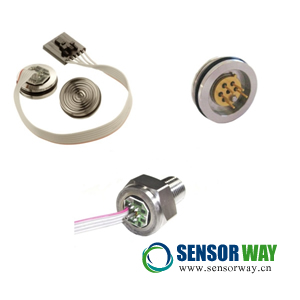

Description: The 82 series is a 19mm small profile, media compatible, piezoresistive silicon pressure sensor packaged in a 316L stainless steel housing. They are designed for o-ring mounting and OEM applications where compatibility with corrosive media is required. The sensing package utilizes silicone oil to transfer pressure from the 316L stainless steel diaphragm to the sensing element.
Features:
O-Ring Mount
±0.2% Pressure Non Linearity
1.0% Interchangeable Span (provided by gain set resistor)
-40°C to +125°C Operating Temperature Range
Refer to the Literature tab for more information on this series of products.
典型應用: 醫療設備，過程控制，淡水&污水測量，半真空氣體測量，壓力變送器，罐內液位（房車&工業）
產品描述: 82系列是一款直徑為19mm的小型硅壓阻壓力傳感器，兼容多種介質，316L不銹鋼封裝。產品采用O型圈密封，專為測量腐蝕性介質的應用而設計。施加在316L不銹鋼膜片上的壓力通過硅油傳導至傳感元件。
特點:
O形密封圈
-40℃~125℃工作溫度范圍
±0.2%非線性
±1.0%互換性（通過增益電阻調節）
82系列壓力傳感器更多技術參數及規格書下載請瀏覽：http://m.yyjsjy.net/sensors/187.html
北京賽斯維測控技術有限公司產品咨詢熱線：010-84775646，84775648。
