- DP86系列壓力傳感器中英文產品介紹
- 來源：賽斯維傳感器網 發表于 2014/6/12
Applications: Level Controls, Tank level measurement, OEM equipment, Corrosive fluids and gas measurement systems, Flow measurements

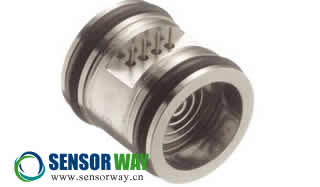

Description: The DP86 Series differential pressure sensor is a double-sided, media compatible, piezoresistive silicon pressure sensor packaged in a 316L stainless steel housing. The series can be configured for o-ring mounting or threaded process fittings. The sensing package utilizes silicone oil to transfer pressure from the two 316L stainless steel diaphragms to a single sensing element. This series is designed for high performance, low pressure applications where differential pressure measurement is required. The stainless steel package makes it suitable for use in liquids and corrosive environments.
Features:
O-Ring Mount/Threaded Process Fittings
-40ºC to +125ºC Operating Range
Up to ±0.1% Pressure Non-linearity
Solid State Reliability
Low Pressure
典型應用: 液位控制，箱內液位測量，OEM 設備，腐蝕性氣體和液體測量系統，流量測量
產品描述: DP86系列是一款雙向受壓的硅壓阻壓力傳感器，兼容多種介質，316L不銹鋼封裝，可選O型圈密封或螺紋過程連接頭連接。施加在316L不銹鋼膜片上的壓力通過硅油傳導至傳感元件。傳感器專為需要高性能、小量程的差壓測量應用而設計，適合液體和腐蝕性氣體。
特點:
O型圈密封/螺紋過程連接頭
-40ºC ~ +125ºC工作溫度范圍
±0.1%非線性
固態結構
低壓測量
DP86系列壓力傳感器更多技術參數及規格書下載請瀏覽：http://m.yyjsjy.net/sensors/191.html
北京賽斯維測控技術有限公司產品咨詢熱線：010-84775646，84775648。
