- ELHS力傳感器中英文產品介紹
- 來源：賽斯維傳感器網 發表于 2014/6/16
Applications: Assembly Forces, Applications Requiring Ultra Fast Response, Tool Forces, Thrust Measurements, Measurements Requiring Low Sensor Deflection and High Resolution, Product Validation Testing
Industries: General Industry

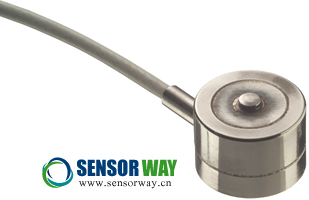

Description: The ELHS load cell is a compact package able to fit into many applications where others cannot. The low noise Wheatstone bridge consists of piezoresistive strain gages which provide 200 mV of typical full scale output. When compact design, extreme stiffness and superior resolution are required, the ELHS load cell is the sensor for your application. The ELHS is provided with either SAE or metric threads for tension and compression applications. Care should be exercised to isolate your ELHS from off-axis loads. The ELHS is a Poisson column design providing low full scale input deflection and superior resolution. Designed specifically to provide high resolution and low deflection, the ELHS will provide an essentially unlimited cycle life expectancy. The ELHS can be configured with a variety of options to fine tune the instrument to your application: select from several standard compensated temperature ranges, input voltages, lead lengths or specify entirely unique combinations of these options.
Features:
Ranges: from 200 to 10,000 lbf
Ultra compact button or threaded stud design
Millivolt output: 200 mV FSO typical
High resolution
Compression or tension/compression
Low deflection
Low mass
Low noise
High reliability
典型應用: 繩索負載，裝配力，稱重，工具受力，推力測量，長期測量，產品驗證測試，材料測試，絞車和起重機負載
行業: 工業控制
產品描述: 典型應用: 裝配力，需要超快速響應的應用，工具受力，推力測量，需要低偏移和高分辨率的應用，產品驗證測試
產品描述: ELHS力傳感器的小型封裝使其適用于很多不同的應用。產品采用低噪聲的金屬箔應變片惠斯通電橋，滿量程輸出的典型值為200 mV。ELHS是需要小型封裝，高強度和高分辨率應用的理想選擇。拉壓力傳感器可選英制或公制螺紋。使用過程中應避免非軸向負載。ELHS采用泊松柱形設計，分辨率高，偏移量小，不受使用壽命限制�？蛻艨筛鶕�(jù)應用配置最適合的ELHS：可選的溫度補償范圍，工作電壓，輸出電纜長度。
特點:
量程：200 ~ 10,000 lbf
超小型螺栓式或紐扣式設計
毫伏輸出：200 mV FSO 典型值
高分辨率
拉壓力或只有壓力
低偏移
質量輕
低噪聲
高可靠性
ELHS力傳感器更多技術參數及規格書下載請瀏覽：http://m.yyjsjy.net/sensors/126.html
北京賽斯維測控技術有限公司產品咨詢熱線：010-84775646，84775648。
